Strip Tube Filling Sealing Machine
Our monodose strip tube filling and sealing machine is widely used for food, pharmaceutical, cosmetics and chemical 5 in 1 plastic tube filling and sealing packaging etc. We offer strip tube filling and sealing solutions with different levels of automation, from manual to semi-automatic to fully automatic.
Get A QuoteContact Our Now
Need a Complete Filling and Packaging Line?
We have a range of high-performance to approve different business requirements.
Feel free to contact our experts for professional advice.
Contact a Specialist NowFeel free to contact our experts for professional advice.
Product Full Detail
The automatic single-dose strip tube filling machine is designed for efficient production of single-dose liquid products in the pharmaceutical, cosmetic, veterinary, and healthcare industries. As an all-in-one system, it integrates product feeding, filling, ultrasonic sealing, cutting, and labeling.
A high-precision ceramic pump delivers filling accuracy up to ±0.05g, ensuring consistent dosage and reliable product quality. The vibratory feeding system automatically positions strip ampoules into molds for continuous operation, keeping the production line running without manual intervention.
After filling, ultrasonic sealing technology creates strong and secure seals without damaging the packaging material.
With stable performance, easy operation, and a space-saving design, this machine is an ideal solution for packaging oral liquids, cosmetic serums, sample products, and other unit-dose formulations.
Video
APPLICATION
Cosmetics: Single-use skincare serums, essences, facial cleansers, and vitamin capsules.
Pharmaceuticals & Healthcare: Oral liquids, eye drops, and nasal saline solution dispensers.
How It Works
- Feeding: Pre-formed strip tubes are loaded into the machine manually or via an automated vibratory system.
- Filling: High-precision pumps (such as ceramic or peristaltic pumps) dispense exact micro-dosages of liquid or paste into each tube.
- Sealing: Ultrasonic sealing technology melts and securely closes the tail of the plastic tubes without burning or damaging the material.
- Cutting & Finishing: The machine trims, cuts, and separates or punches the sealed strip into defined rows or finished multi-dose pocket strips.
TECHNICAL SPECIFICATION
| Model | HESF-50 |
|---|---|
| Power Supply | 110/220 V, 50/60 Hz, Single Phase |
| Power | 2.6 KW |
| Air Pressure | 0.6 MPa |
| Recommended Filling Range | 0.5-15 ml |
| Sealing Speed | 13-15 Rows/minute |
| Filling Accuracy | ±0.05 g |
| Sealing Height | 50-150 mm |
| Ultrasonic Frequency | 20 KHz |
| Sealing Diameter | 50-1350 mm |
| Body Material | 304 Stainless Steel |
| Machine Size | L1187*W1106*H1553 mm |
| Machine Weight | About 350 kg |
WHY CHOOSE US
End-to-End Machinery Solutions
From concept to commissioning, We handle everything Whether you need injectable filling lines, solid dosage packaging, or topical product systems, we deliver complete turnkey solutions tailored to your production requirements.
✓ Injectable filling systems (vials, syringes)
✓ Filling products material (liquid, powder, creams, ointments, gels)
✓ Custom integration with existing lines
✓ Injectable filling systems (vials, syringes)
✓ Filling products material (liquid, powder, creams, ointments, gels)
✓ Custom integration with existing lines
📋 Comprehensive Compliance Support
We don't just deliver machines—we ensure they meet global regulatory standards. Our team handles all documentation, testing, and validation to get you production-ready faster.
✓ Full validation packages (IQ/OQ/PQ)
✓ Factory Acceptance Testing (FAT) & Site Acceptance Testing (SAT)
✓ Operator training & SOP development
✓ Regulatory file support (GMP, cGMP)
✓ Full validation packages (IQ/OQ/PQ)
✓ Factory Acceptance Testing (FAT) & Site Acceptance Testing (SAT)
✓ Operator training & SOP development
✓ Regulatory file support (GMP, cGMP)
🔧Lifetime After-Sales Support
Your success is our long-term commitment Our relationship doesn't end at installation. We provide ongoing maintenance, upgrades, and spare parts management to maximize your equipment uptime and ROI.
✓ 24/7 technical support hotline
✓ Preventive maintenance programs
✓ Equipment upgrade consultancy
✓ Genuine spare parts with fast delivery
✓ 24/7 technical support hotline
✓ Preventive maintenance programs
✓ Equipment upgrade consultancy
✓ Genuine spare parts with fast delivery
Your Journey to the Perfect Filling Solution
Why Choose Us
🎯 Complete Turnkey Solutions
From design to installation, we handle every step of your production line setup
🏭 ISO-Certified Factory
Own manufacturing facility with strict quality control and proven production capacity
🎨 Flexible Customization
Tailor-made solutions that integrate seamlessly with your existing production lines
📋 Full Compliance Support
Complete validation packages (IQ/OQ/PQ), FAT/SAT, and regulatory documentation
🌍 Global Project Experience
500+ installations across 40+ countries with multilingual technical support
🔧 24/7 After-Sales Service
Preventive maintenance, spare parts management, and upgrade consultancy
From design to installation, we handle every step of your production line setup
🏭 ISO-Certified Factory
Own manufacturing facility with strict quality control and proven production capacity
🎨 Flexible Customization
Tailor-made solutions that integrate seamlessly with your existing production lines
📋 Full Compliance Support
Complete validation packages (IQ/OQ/PQ), FAT/SAT, and regulatory documentation
🌍 Global Project Experience
500+ installations across 40+ countries with multilingual technical support
🔧 24/7 After-Sales Service
Preventive maintenance, spare parts management, and upgrade consultancy
Common Questions about Strip Tube Filling Sealing Machine
What is a single-dose strip filling machine?
A single-dose strip filling machine is an automated packaging system that fills liquid or semi-liquid products into small pre-formed plastic strip ampoules, then seals, cuts, and labels each strip in one continuous process. It is widely used for unit-dose products where hygiene, accurate dosing, and tamper-evident sealed packaging are required, such as nasal saline, eye drops, cosmetic serums, and oral liquid samples.
What products can this machine fill?
The machine is suitable for low-viscosity liquids and paste-like products, including nasal saline solution, eye drops, cosmetic serums and essences, oral liquids, healthcare liquids, and veterinary unit-dose products. Product characteristics such as viscosity and whether particles are present are reviewed before order confirmation to select the right pump and filling heads for your product.
What is the filling range and accuracy?
The machine covers a filling range of approximately 0.5 to 15 ml per single dose, with filling accuracy up to ±0.05 g thanks to the high-precision ceramic pump. The ceramic pump structure is wear-resistant and stable over long production runs, which keeps dosage consistent from the first strip to the last. Exact filling range and accuracy for your product should be confirmed with our engineers.
How does ultrasonic sealing work, and why is it used?
Ultrasonic sealing uses high-frequency vibration (20 kHz) to weld the plastic strip together without direct heat contact. There is no warm-up time, no thermal distortion of the packaging, and no burn marks on the finished product. The result is a strong, consistent, leak-proof seal that protects product quality and gives the finished strips a clean, professional appearance.

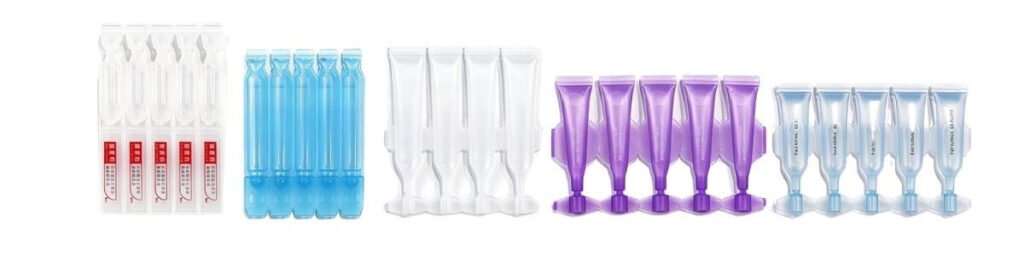

What strip ampoule materials are compatible?
The machine works with common single-dose strip materials such as PP and PE plastic composite tubes and aluminum-plastic composite tubes. Different tube shapes and sizes are handled by changing or customizing the molds, and the vibratory feeding system automatically positions the strip ampoules into the molds for continuous operation.
What is the production speed of the machine?
The machine fills and seals at a speed of approximately 13 to 15 rows per minute, with the exact output depending on your fill volume, strip format, and number of rows per strip. The integrated labeling station applies labels at around 40 to 80 pieces per minute with a labeling accuracy of ±1 mm. Final speed for your product should be confirmed during project engineering.
What happens if a strip is missing or the machine detects a fault?
The machine is equipped with automatic detection: when no strip ampoule is present in the mold, the machine stops filling and sealing to avoid wasted product and rejected packages. A fault alarm system warns operators of abnormal conditions, helping maintain stable, unattended operation and reducing material loss.
What materials is the machine made of?
The machine body is mainly made of 304 stainless steel. Parts in contact with the product can be supplied in SUS304 or SUS316 depending on your product characteristics. This structure supports cleaning and maintenance routines required in pharmaceutical, cosmetic, and healthcare production environments.
